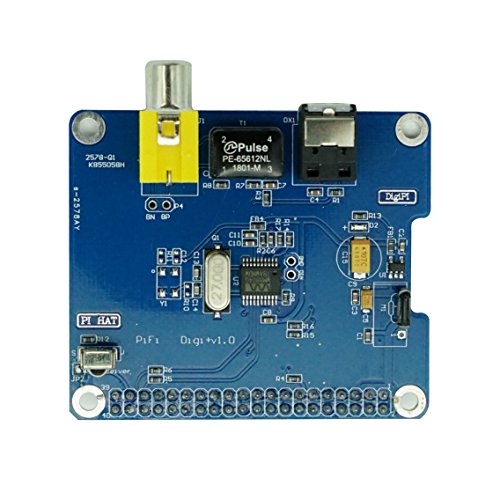

Geekteches HiFi DiGi+ Digital Sound Card Module I2S SPDIF Interface, Optical Fiber for Raspberry Pi 3 Model B+/ 3B/ 2B/ B+
Spdif card is convenient that this expansion board also provide two output interface fiber (S/PDIF) and coaxial (RCA) for external device. User can get rid of the PC power, boot off slowly, the power supply noise and so on.
Raspberry pi sound card provides power indicator light for you to observe the expansion board status easier. This sound card also supports in hardware volume control (I2C interface).
Expansion board designed for Raspberry pi 3 2 Model B B + The user can cooperate audio player system to set up their own network HIFI player after using HIFI DiGi+ board This is an expansion board designed for Raspberry pi 2 model B & B+, adapt Wolfson company high-end digital chip. Using the 12S interface, support 16 to 24 audio data formats and the advanced shake reduction technology could control the Intrinsic period jitter in 50ps RMS.
● Material: Acrylic
● Color: Black
● Compatible with Raspberry Pi 2/Model B+ HIFI DiGi+ Digital Sound Audio Card
1x HIFI DiGi+ Module
Do not use other Raspberry Pi GPIO extensions. The product support rune audio and osmc system, not volumio system when apply on Raspberry Pi 3 board.
- HIFI DiGi+ Digital Sound Card I2S for Raspberry pi 3 2 Model B B +
- Bit-perfect output, audio data stream will not be modified in any way
- Tall 192kHz sampling rate support, advanced shake reduction technology can be intrinsic jitter (Intrinsic period jitter) control within 50ps RMS.
- Using I2S interface to digital audio through the optical fiber and coaxial digital output, suitable for power amplifier.
- The user can cooperate audio player system to set up their own network HIFI player after using HIFI DiGi+ board. Notes: The product support rune audio and osmc system, not volumio system when apply on Raspberry Pi 3 board .
